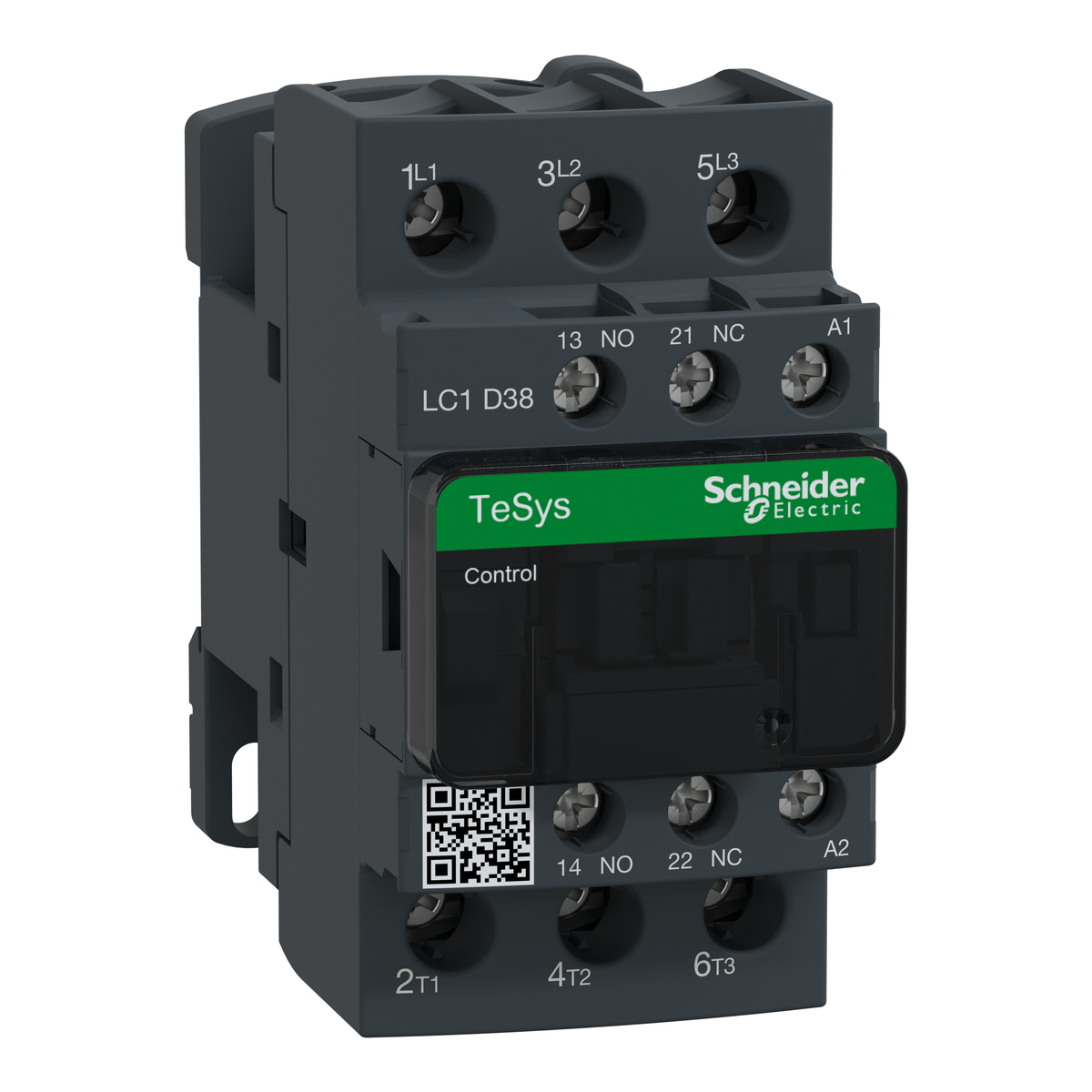

TeSys D – LC1D38P7

₦101,730.68

TeSys D contactor, 3P(3 NO), AC-3, <= 440 V 38 A, 230 VAC 50/60 Hz coil

Choose Quantity
SKU: LC1D38P7 Category: Brand:

TeSys D contactor, 3 poles (3NO), for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
